Floor Scale Base Features
Plug and Weigh Set Up
Heavy Duty Steel Construction
Heavy Duty Diamond Tread Plate
Two Part Epoxy Paint Finish
Four CE Approved Alloy Steel Load Cells
Four Ball and Cup Support Feet for Scale Leveling
Top Access Foot Adjustment
20' Long Armored Interface Cable with Quick Connect
Top Access Junction Box
1. Weighing Capacity: 5000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator/optional indicator
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
| Dimension | capacity | spectfication |
|---|---|---|
| 0.8*0.8m | 1ton 2ton 3ton | A) Single deck |
| 1.0*1.0m | 1ton 2ton 3ton | B) Carbon steel |
| 1.2*1.2m | 1ton 2ton 3ton | C) U-shape beams by moulds |
| 1.2*1.5m | 1ton 2ton 3ton | D) With load cells |
| 1.5*1.5m | 1ton 2ton 3ton | E) Indicator optional |
| 1.5*2.0m | 1ton 2ton 3ton 5ton | F) With junction box |
| 2.0*2.0m | 1ton 2ton 3ton 5ton | G) 5M signal cable |
| 2.0*3.0m | 1ton 2ton 3ton 5ton 10ton | H) Ramps optional |
Features and Advantages
1. Available in a range of standard sizes and capacities.
2. Can be made to any custom size,shape or capacity to meet unique needs.
3. Built for strength,reliability and repeatable accuracy.
4. Carbon steel and baking epoxy paint/
5. Standard Capacity:100Kg-10000Kg.
6. Checkered plate to skid proof.
7. High precision shear beam load cells with adjustable feet and locationg plates.
8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.
9. Digital out-stand indicator (LCD / LED) with high accuaracy.
10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.
11. Ideal for daily,constant usage and heavy duty applications.
High Precision:
1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.
2. Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.
Factory Workshop

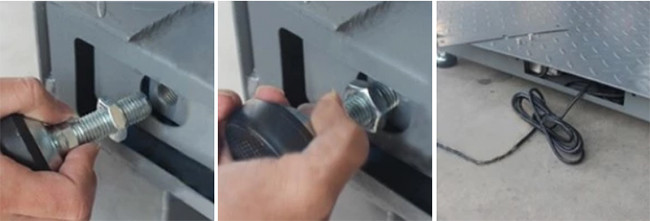

1. Amin the universal pin at the screw hole
2. Turn up,adjust the height

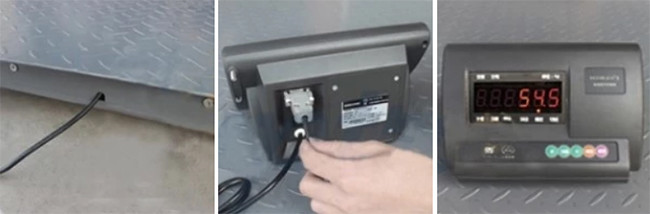

3. Turn off the white screw and pull out the cable
4. Lock the slot
5. Plug the connector into the intrument
6. The installation is complete,you can see

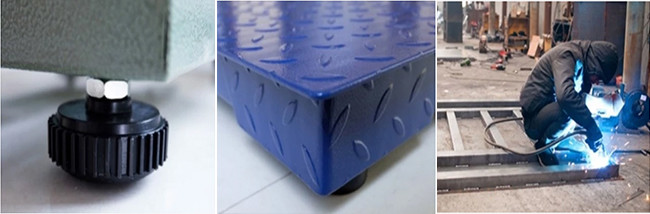

Detailed Explanations:
1. Thickened scale foot to ensure the stability of the scale body.
2. Enveloping angle structure makes the structure more stable.
3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.
Exhibition
FAQ
Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
